KL-MS-722

1.材料：锌合金锁壳、锁芯，塑料锁壳、锁芯，镀锌锁片2.表面处理：喷无光黑或镀铬，配件镀锌3.结构说明：90°旋转实现开启或锁闭

PDF下载 2D下载 3D下载


1. Materials: Zinc alloy lock case, lock core, plastic lock case, lock core, galvanized lock plate

2. Surface treatment: Spray matte black or chrome plating, and galvanized accessories

3. Structural description: 90 ° rotation to achieve opening or locking

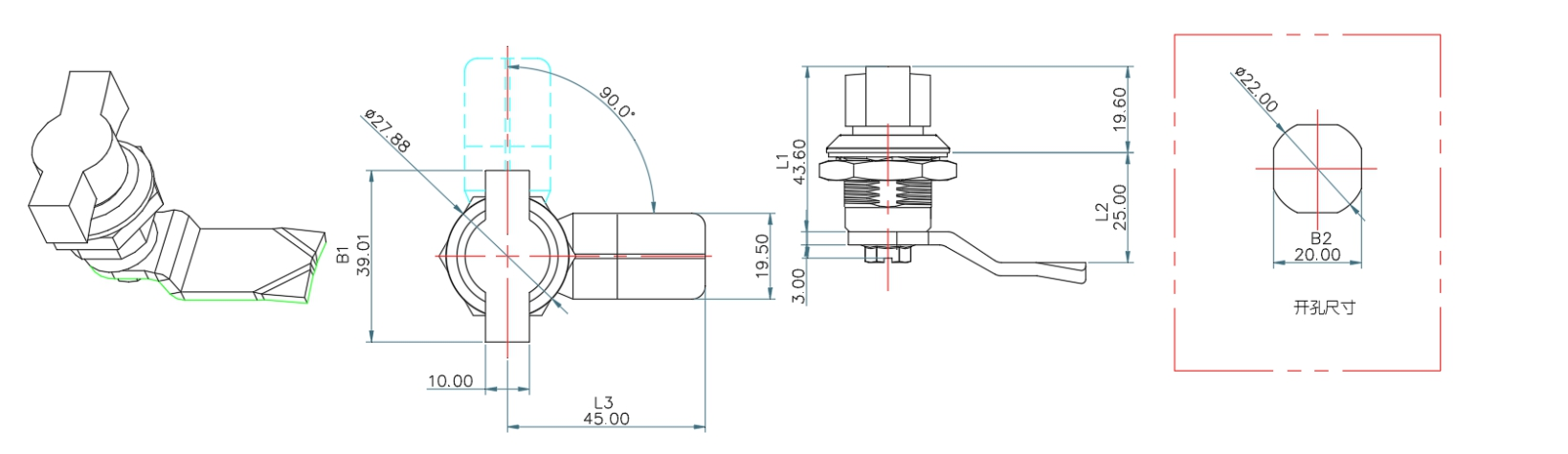

基本尺寸/Basic dimensions

产品品名

Product Model

产品单重

Weight

装箱数

PCS

L1L2L3B1B2MS-72267300
43.6
25453920
