KL-MS-816-1

1.材质：锌合金锁体，镀锌钢止动垫圈、锁片2.表面处理：喷无光黑3.适用门板厚度：1-8MM3.备注：压缩式门锁，压缩量约7MM，锁芯旋转210°

PDF下载 2D下载 3D下载


1. Material: Zinc alloy lock body, galvanized steel stop washer, lock plate

2. Surface treatment: Spray matte black

3. Applicable door panel thickness: 1-8MM

3. Remarks: Compression type door lock, compression amount of about 7MM, lock cylinder rotates 210 °

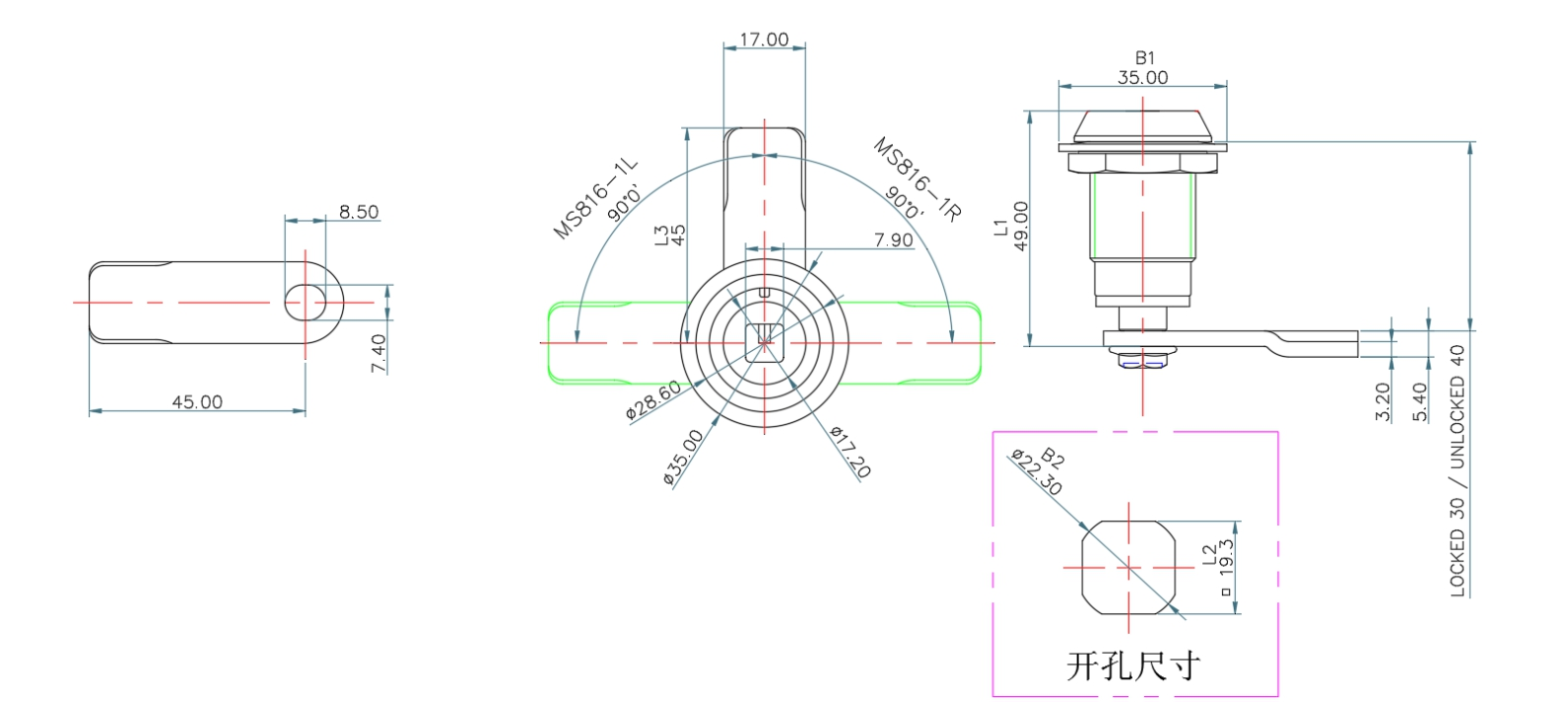

基本尺寸/Basic dimensions

产品品名

Product Model

产品单重

Weight

装箱数

PCS

L1L2L3B1B2MS816-1105
100
49
19.34535∅22.3
