KL-MS-402

1.材料：锌合金基座和手柄，碳钢钢栓和压板2.表面处理：电镀哑光，配件镀蓝白锌3.结构说明：挑起手柄旋转90°，实现开启或锁闭

PDF下载 2D下载 3D下载

1. Material: Zinc alloy base and handle, carbon steel bolt and pressure plate

2. Surface treatment: Electroplated matte, accessories coated with blue and white zinc

3. Structural description: Lift the handle and rotate it 90 ° to achieve opening or locking

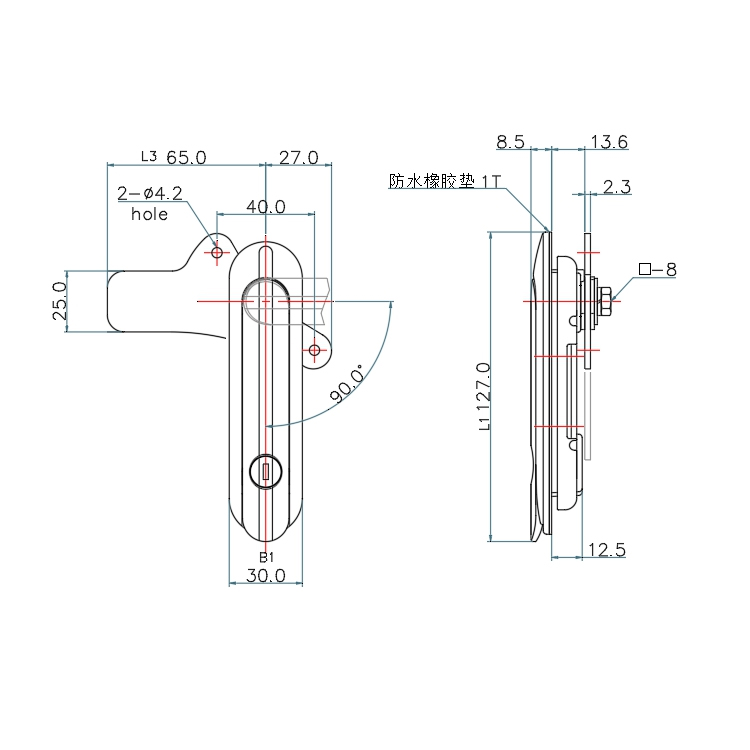

基本尺寸/Basic dimensions

产品型号/Product model

产品单重（克）

Product weight per unit

装箱数

KL-AB-402

ms402+(S-4)=234.5g

100（PCS)

127

ms402+(P-5)=221.5g
