KL-MS-400-KB

1.材料：锌合金基座和手柄，碳钢钢栓和压板 2.表面处理：电镀亮铬/沙铬喷黑多种工艺处理，配件镀蓝白锌 3.结构说明：挑起手柄旋转90°，实现开启或锁闭


1. Material: Zinc alloy base and handle, carbon steel bolt and pressure plate

2. Surface treatment: Electroplating bright chromium/sand chromium spray black with multiple processes, accessories plated with blue and white zinc

3. Structural description: Lift the handle and rotate it 90 ° to achieve opening or locking

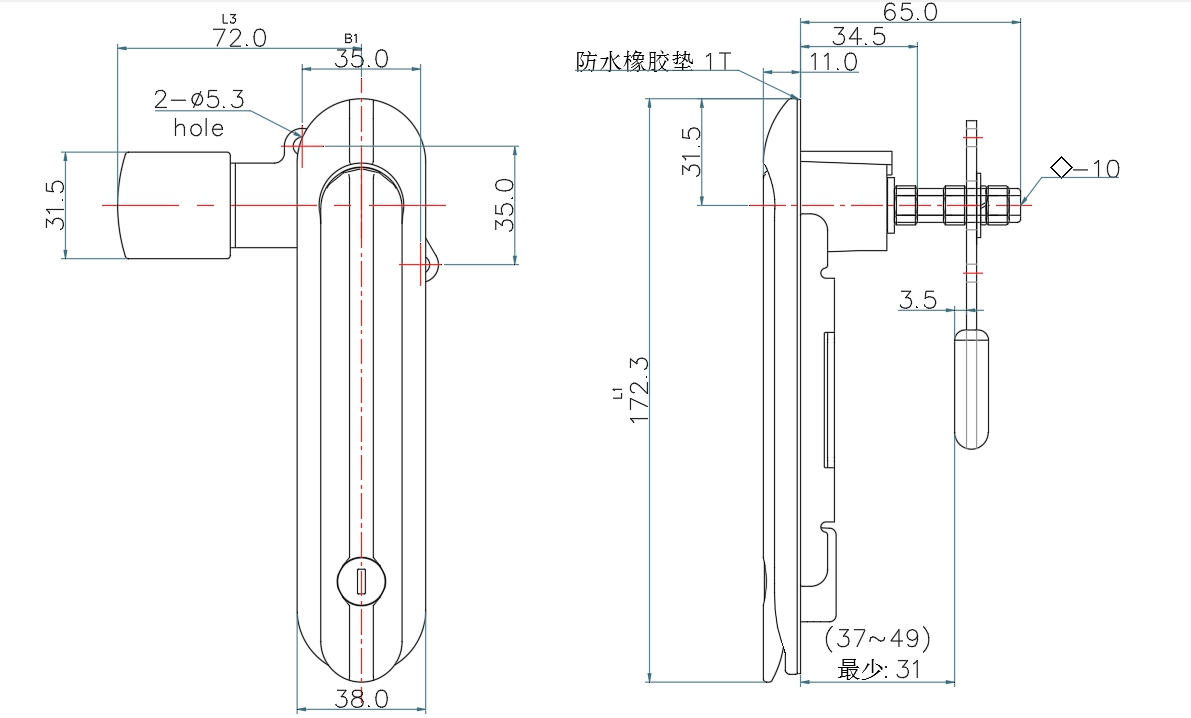

基本尺寸/Basic dimensions

产品型号/Product model

产品单重（克）

Produt weight per unit

装箱数

KL-AB-400-KB

40（PCS)

172.3

141
