KL-MS-401-KB

1.材料:锌合金基座和手柄,碳钢钢栓和压板 2.表面处理:电镀亮铬/沙铬喷黑多种工艺处理,配件镀蓝白锌 3.结构说明:挑起手柄旋转90°,实现开启或锁闭


1. Material: Zinc alloy base and handle, carbon steel bolt and pressure plate

2. Surface treatment: Electroplating bright chromium/sand chromium spray black with multiple processes, accessories plated with blue and white zinc

3. Structural description: Lift the handle and rotate it 90 ° to achieve opening or locking

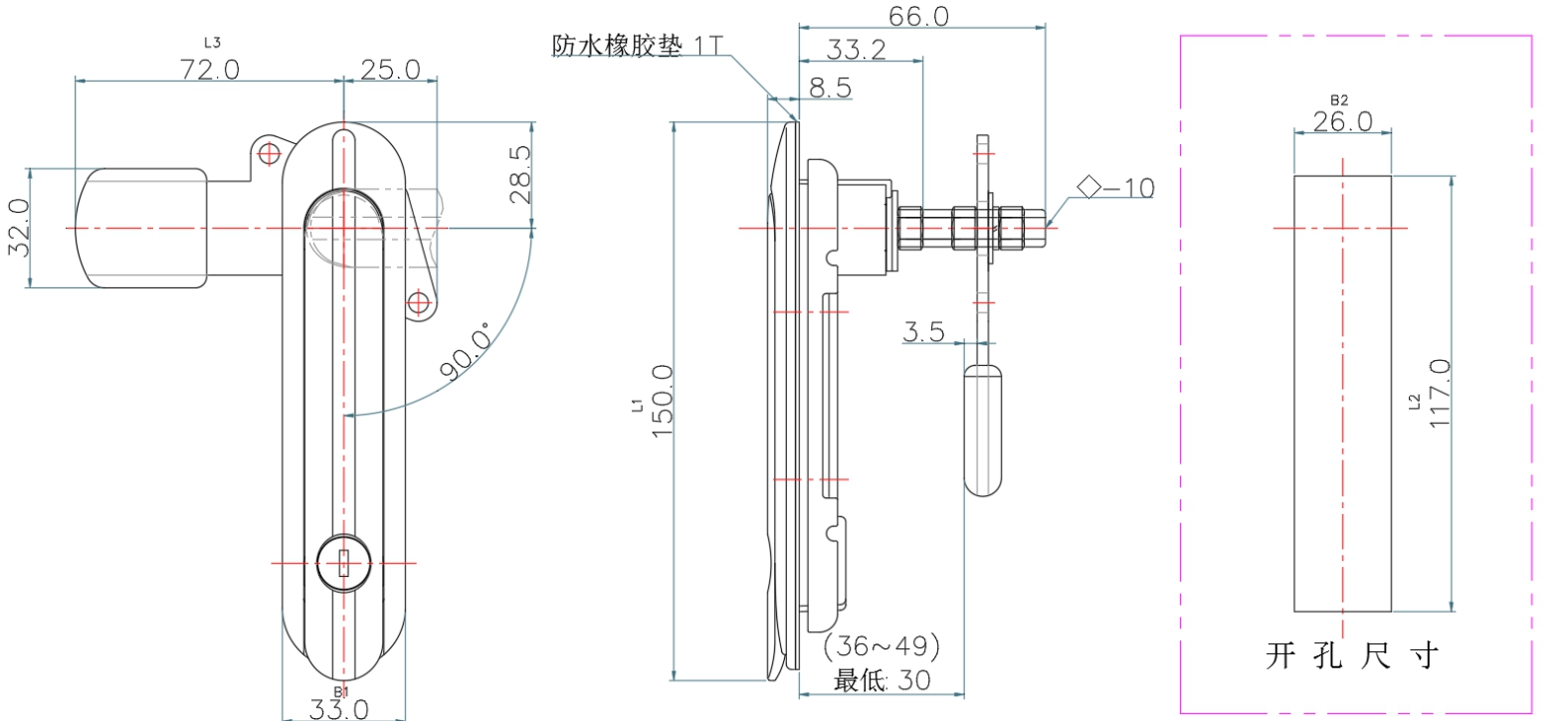

基本尺寸/Basic dimensions
产品型号/Product model

产品单重(克)

Product weight per unit

装箱数
L1L2L3B1B2KL-AB-401-KB
80(PCS)
150
117723326
