KL-MS-600

1.4#锌合金、镀锌刚栓2.表面处理:哑光、亚黑、亮铬3.功能用途:转动锁芯,把手转动90°,实现左右开门4.可生产专用锁芯,两点、三点锁门刚栓,转动锁杆5.备注:共有4款,常规款、带螺杆款、带挂款、


1.4 # Zinc alloy, galvanized steel bolt 2. Surface treatment: matte, sub black, bright chrome

3. Function and purpose: Rotate the lock core and handle 90 ° to achieve left and right door opening

 4. Can produce dedicated lock core, two-point and three-point locking steel bolts, and rotating lock rod

5. Remarks: There are four options available, including standard, screw with screw, hanging, and screw with hanging

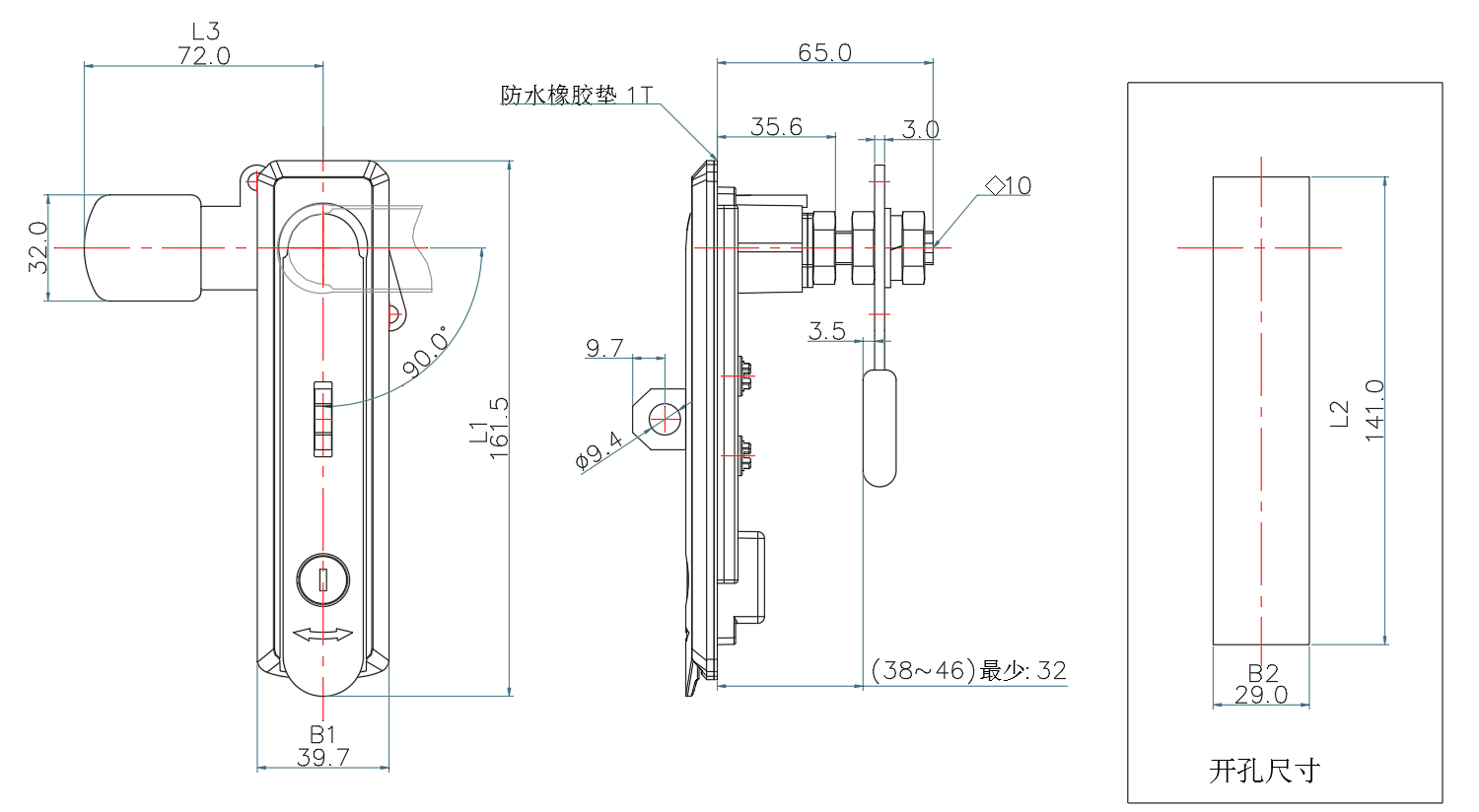

基本尺寸/Basic dumensions产品型号/Product model

产品单重(g)

Product weight per unit

装箱数
L1L2L3B1B2
161.51417239.729
KL-MS-600-1

143
1177236.726KL-MS-600-2

125.7967234.123KL-MS-600-3
