1. Zinc alloy body and galvanized locking plate
2. Surface treatment: Nano matte paint
3. Opening method: Turn the key 180 ° to the left, press the lock cylinder, and after the handle pops up, turn the handle 90 ° to the right (the positioning part can be adjusted as needed to achieve left door opening and left rotation)
4. Applicable door panel thickness: thickness ≤ 4mm

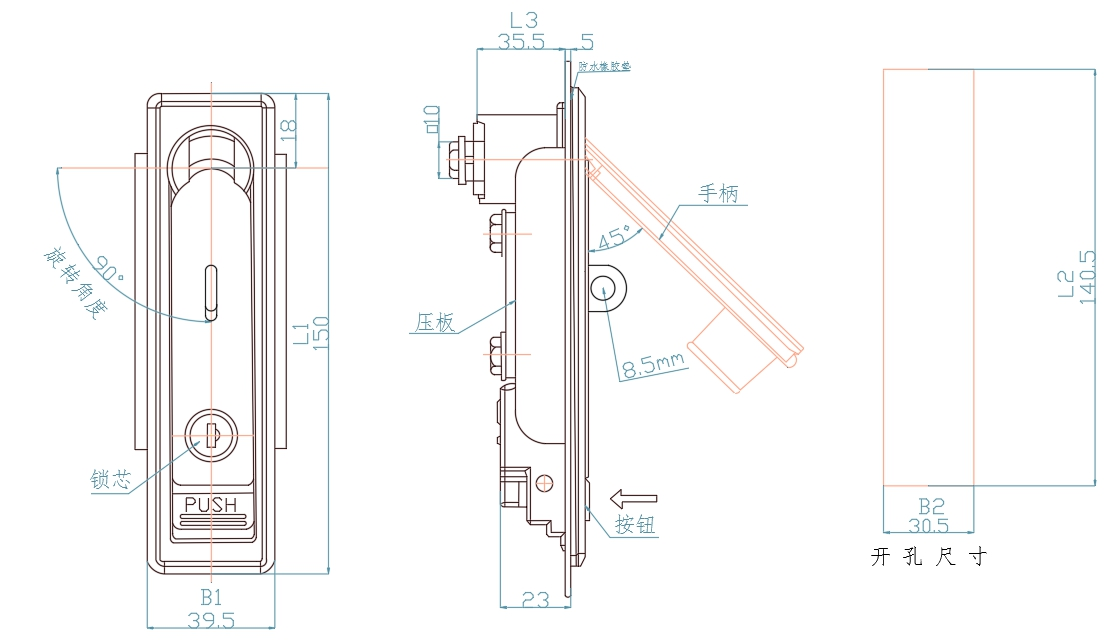

| 基本尺寸/Basic dimensions | 产品型号 Product model | 产品单重（克） Product weight per unit | 装箱数 PCS | ||||
| L1 | L2 | L3 | B1 | B2 | |||
| 150 | 140.5 | 35.5 | 39.5 | 30.5 | KL-MS-712 | 381g | |
| 150 | 140.5 | 35.5 | 39.5 | 30.5 | KL-MS-712-1G | 395g | |
