KL-106-2-2

1.锌合金主体、镀锌锁片2.表面处理:镀亮铬/喷塑黑3.打开方式:钥匙左旋180°,按压锁芯,把手弹起后把手右旋90°(可根据需要调整定位件实现左开门左旋)4.适用门板厚度:厚度≤4MM



  1. Zinc alloy body and galvanized lock plate

  2.  Surface treatment: bright chrome plating/spray black coating

  3. Opening method: Turn the key to the left 180 °, press the lock core, and turn the handle to the right 90 ° after the handle pops up (the positioning part can be adjusted as needed to achieve left door opening and left rotation)

  4. Applicable door panel thickness: thickness ≤ 4mm

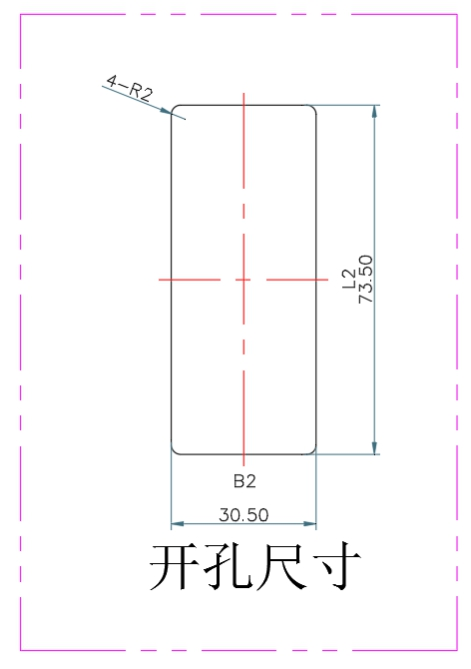

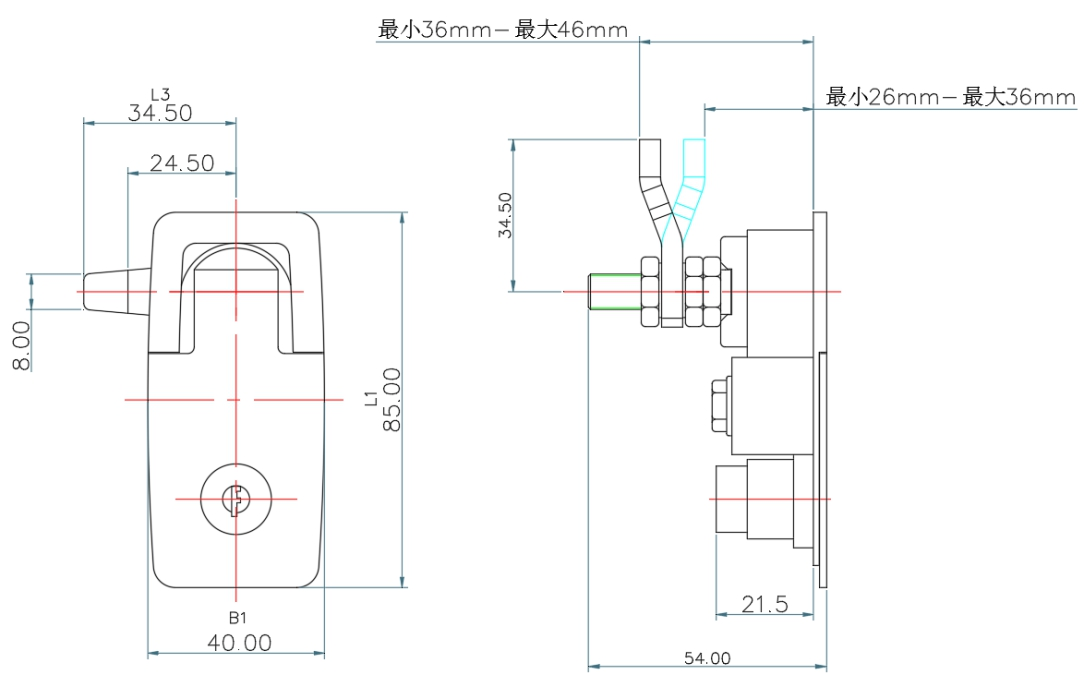

基本尺寸/Basic dimensions

产品型号

Product model

产品单重(克)

Product weight per unit

装箱数

PCS

L1L2L3B1
B2KL-106-2-2211g
100
85
73.534.54030.5
